Purpose
The Program Identification GUI (PIG) allows observers on split nights
to easily indicate which observing program is currently being
executed. This information permits the Keck
Observatory Archive (KOA) to tag the images with the
appropriate observing program and observer list, and ensures that
the data files are assigned the correct proprietary period.
Click to enlarge/shrink

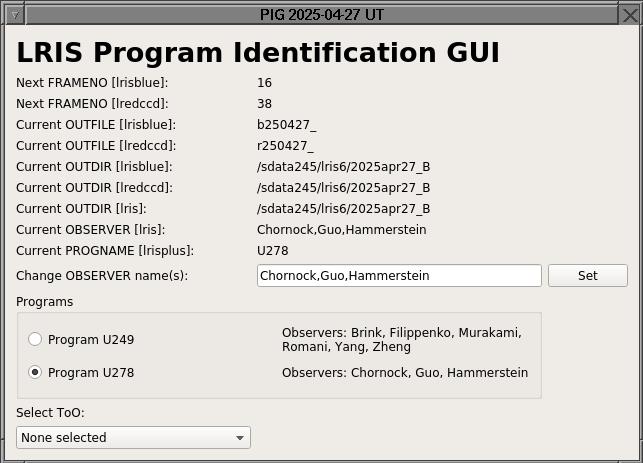

By clicking the button on the appropriate observing program, the
observer changes both the observer list (stored in the
OBSERVER keyword) and the data directory (generally
stored in the OUTDIR keyword).

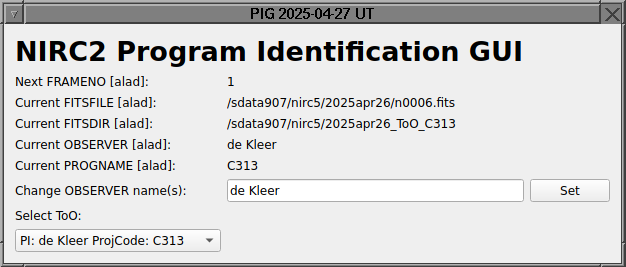

The PIG also allows you to select an approved target of opportunity (ToO) program. These programs are normally hidden under the "Show ToO Programs" button at the bottom left. Click on it, and the PIG is expanded to display a list of approved ToO programs. Click on the program's ID to select. Make sure to click back to your scheduled progam on top after the ToO interrupt is over! For details, see the full ToO policies and procedures.
Click to enlarge/shrink
Controls
Program Button
For each observing program scheduled to share the night on the current
instrument, the program information buttons display:
- the program ID (e.g., U038D),
- the Principal Investigator name (e.g.,
Illingworth)
The currently active program is indicated in green. To switch
programs, click the progam button for the appropriate program.
Observer List
The observer list corresponding to each program is shown at
right. To change the observer list, type the names into the entry
both and click on the "Set" button.
Current data
At the bottom, the PIG displays:
- Names of the current observers
- Location of the current OUTDIR, the output data directory
